체계적이고 일관성 있는 시스템 구축을 위해 대내외 사용자의 요구사항에 부합되는 계획을 수립하여
무 정지 시스템의 구축이 가능하도록 InlineWorks로 Inline Controller System을 구축합니다.
Overall Work-Scope
  • Final Spec Meeting
  • Requirement Analysis
  • PLC System Configuration (H/W, S/W)
  • PLC Network Line Configuration
  • H/W & S/W Design
  • Assembling PLC Panel
  • Programming
  • PLC Network Cabling
  • Implementation
  • Unit Test
  • Integration
  • Acceptance

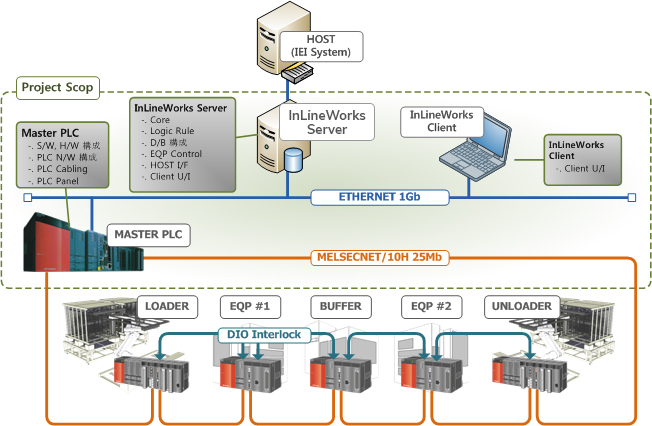

Overall Work-Scope 사진

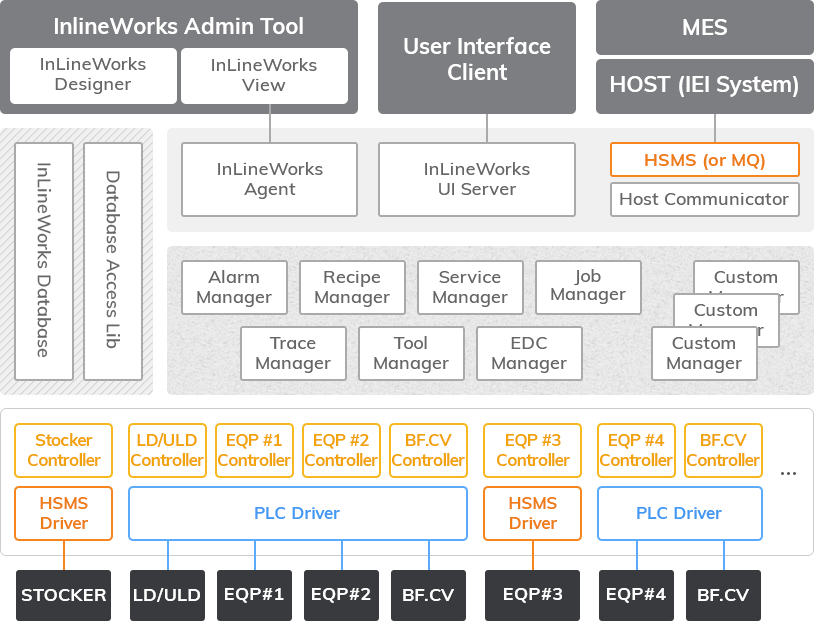

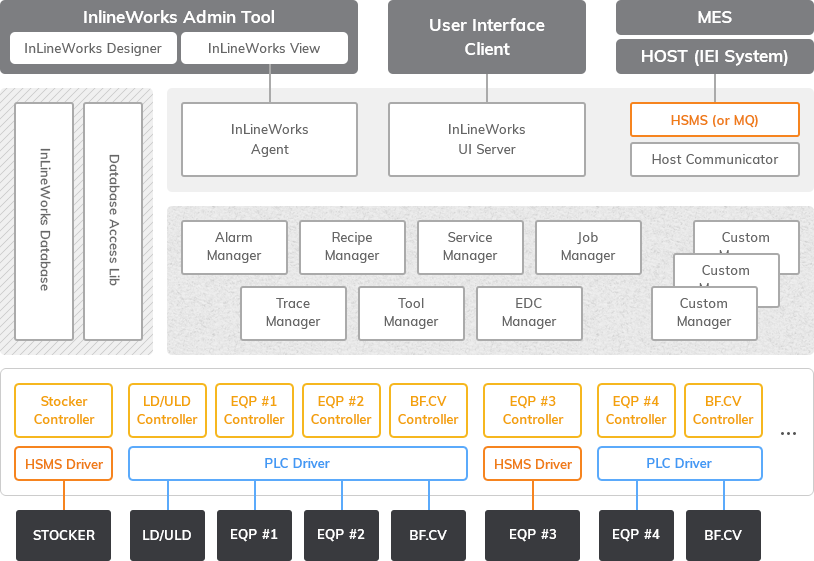

InLineWorks Architecture
ArchitectureArchitecture
Solution Benefit
InLineWorks System
  • 빠른 In-Line Control System
  • 라인 내에서 Inline Control System의 표준화
  • 사용자의 Business 요구에 따라 유연한 대응
  • EDA System을 위한 Engineering Data Collection을 지원
  • Host I/F를 위해 SECS를 지원하며, 3rd Party I/F(MSMQ, ) 모듈과 같이 사용이 가능
  • Detail한 Security 관리 및 Powerful한 Emergency 기능
  • 최적의 반송 Logic을 적용하여 Inline 효율성 향상
MELSEC PLC
  • 대용량의 Process정보와 Engineering 목적의 실시간 Data 지원
  • Master PLC는 이미 검증된 국내 및 해외 사례
  • 장비 Maker의 손쉬운 대응으로 개발 및 Setup 기간 단축.
  • 안정적이고 심플한 System
  • On Demand Event 방식을 사용하여 Event가 발생 하였을 경우
    해당 Memory Map을 읽어 간결한 Data 취합이 가능
