It is an automatic conveying system
through I/F between MES and conveying equipment.

It minimizes the return traffic with the effective structure of the MCS system, The Smart Trans EI System's own AGV/Stocker status is managed so that even if the repair period is prolonged, it can be operated as a normal AGV/Stocker.
It has the following advantages by introducing Logic RUel.
  • Simplified maintenance by minimizing system structure.
  • Maintenance/repair by own technology with structure of window environment.
  • Eliminate loads and risks of network by improving the network (dual network).
  • Application of tools to manage and manage each MHS system (Monitoring Server).
  • System recovery and operation by introducing a Fail-Over System (Optional)

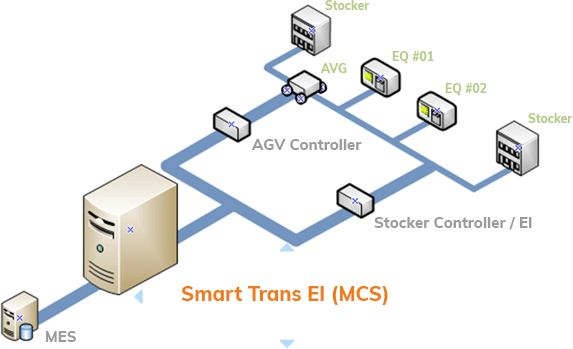

Smart Trans EI System

FUNCTIONALITY
MCS Process(IEI Process, MBS Svr)
1Transfer equipment I/F
  1. Send to Status Event MES occurring in Stocker, AGV and EQ.
  2. Transfer the Transfer Command executed in the MES or MCS UI to the transfer equipment.
2Raw Data Logging
A function to view the completed log by executing one transfer command.
3Inventory management
  1. Store LOT/Cassette that is in Stock in Stocker in MCS DB and monitors it.
  2. Store real LOT/Cassette of Stocker in real-time MCS DB (cycle, event).
4LOT/Transfer Validation
Before transferring the Transfer Command executed in the MES or MCS UI to the transfer equipment, communicate as filtering unnecessary command with validation check (such as LOT, Status) and prevent equipment load.
5Status/Port Info Management
  1. Save the status of Stocker, AGV, and Port in real-time MCS DB and monitor them.
  2. If the status of the destination is abnormal in the Transfer command or if there is a second destination, the LOT/Cassette is automatically returned to the second destination.
6Alarm Notification
When an important alarm occurs, send an e-mail to the set user.
Monitoring Server
  • System Monitoring When the Smart Trans EI System is multiple, monitor the use of each system
  • Performance MonitoringPrevent overload of a specific system as monitoring the usage of each Smart Trans EI System (such as HDD, Memory, CPU, etc)
  • Process Monitoring/RecoveryIt checks whether the MCS Process is executed. If it is not executed, function recovery.
  • MSMQ Monit
  • Log Analysis.Identify the cause of errors through analysis of specific LOT/Cassette or Transfer Command.
  • Report Data Merge. Summary of Data (such as Transfer, Status, Alarm, etc.) events executed in each process on a daily basis.
  • Monitoring Client ManagemenLog In User Management, Enable/Disable function for each screen
MCS UI
  • MCS ManagementView MCS Command, execute and cancel it.
  • EI ManagementEI HSMS network status setting and message setting.
  • EQ Configuration.Equipment and port setting.
  • AGV Configuration.AGV, EQ-AGV relationship setting.
  • MCS Monitoring.Monitor MCS progress status and View a location of LOT.
  • Transfer Route Configuration.MCS Flow Setup Management.
